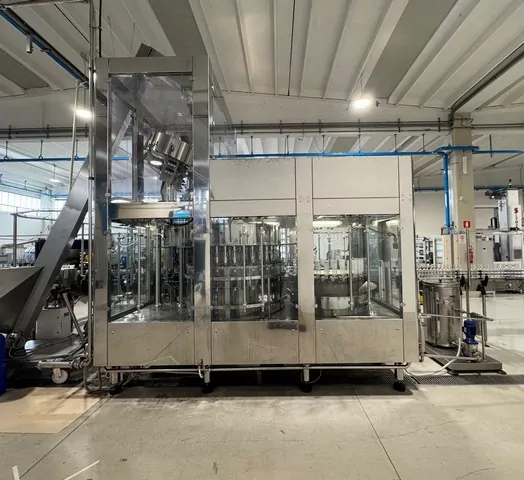

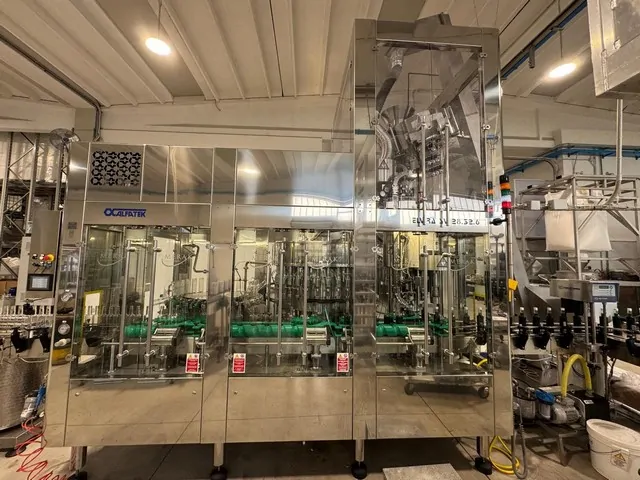

Used Filling triblock Alfatek TBT 28.32.6 Elvira:

Model: TBT 28.32.6 ELVIRA

Anno: 2013

Speed: 8,000 BPH with 0.750 liter bottles

Senso orario

Suitable for glass and PET bottles

Can fill liquid or dense products

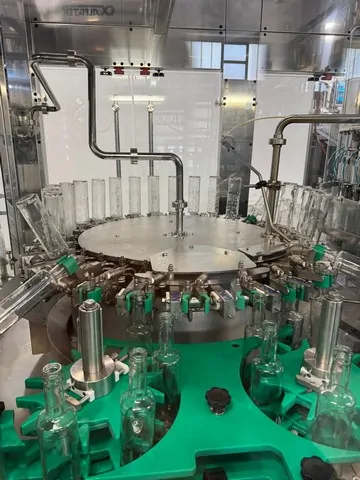

RISCIACQUO

28 morsetti

Regolazione dell'altezza del carosello: elettrica

Ugello fisso

Numero di trattamenti: 1

Type of treatments: air or water

Vasca di ricircolo

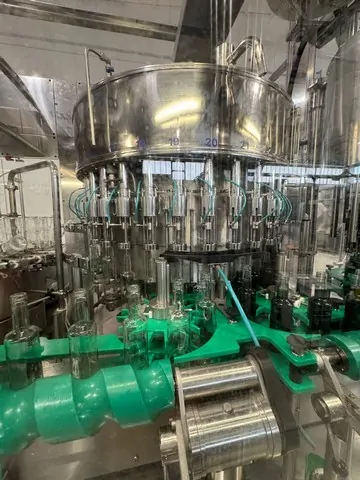

FILLER

32 valvole

Tank height adjustment electric

Filling type: light pressure in the tank, empty in the bottle

Tipo di valvola: meccanica

Automatic level variation with electronic-mechanical system

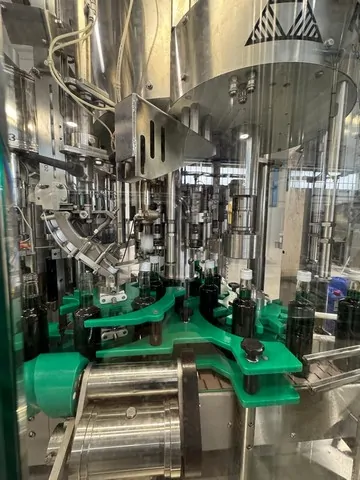

cappero

teste 6

Type of cap that can be processed: Aluminum screw cap; plastic pressure cap, plastic mushroom cap

Regolazione elettrica dell'altezza della testina

Screw cap size:

– Ø 31.5 mm x 24 mm (h)

– Ø 31 mm x 8 mm (h)

– Ø 31.5 mm x 60 mm (h)

– Ø 31.5 mm x 44 mm (h)

Snap cap size for PET bottles: Ø 31 mm x 21 mm (h)

Plastic mushroom cap size: Ø head 29 mm x 13 mm (h)

Sistema di distribuzione:

Distribution by catch on the fly and Pick & Place

DATI GENERALI

Accident prevention protections with glass doors

Sterile chamber pressurized with microfiltered air 0.2 micron

Universal augers and variable geometry stars to be able to process bottles with Ø 55-110
